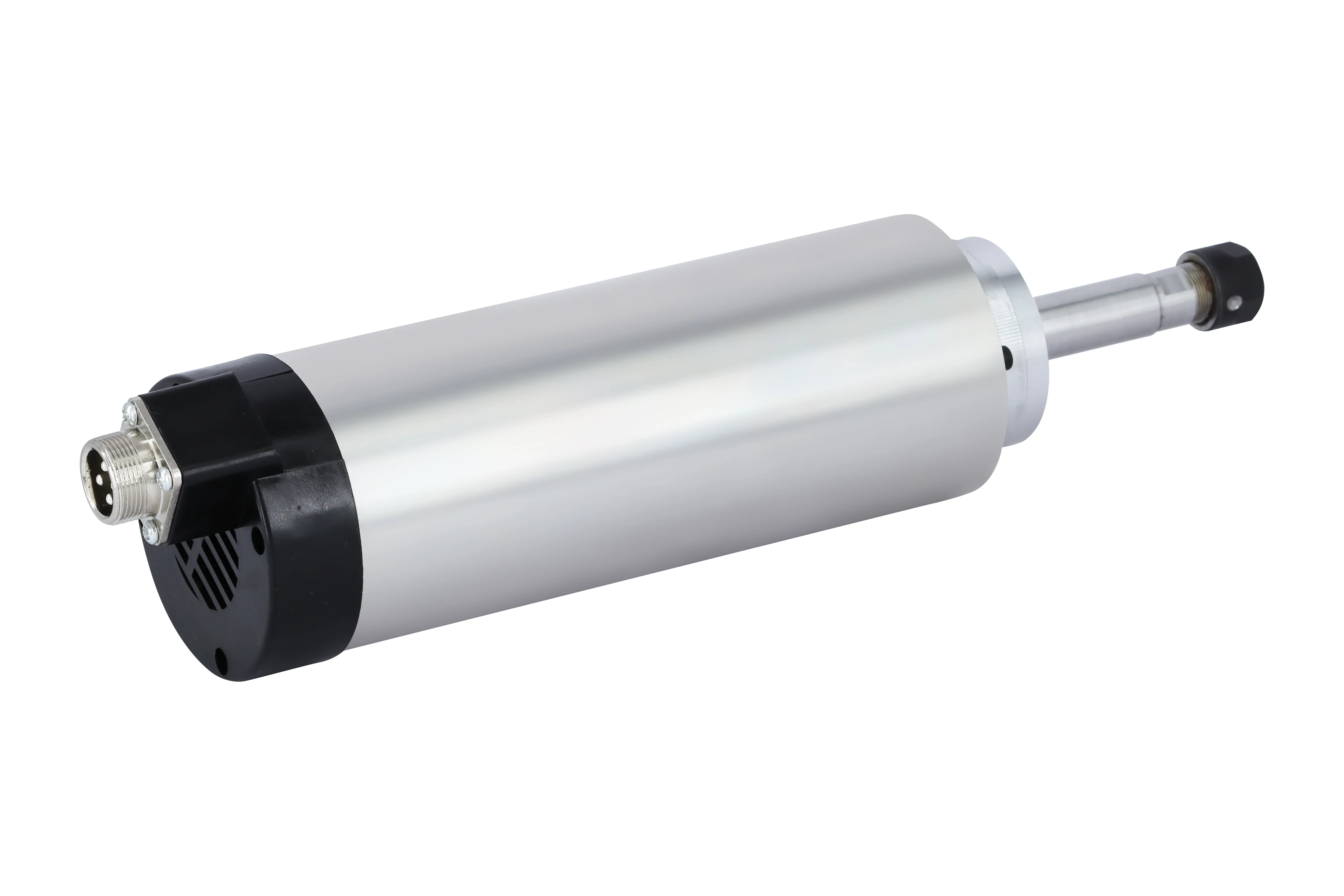

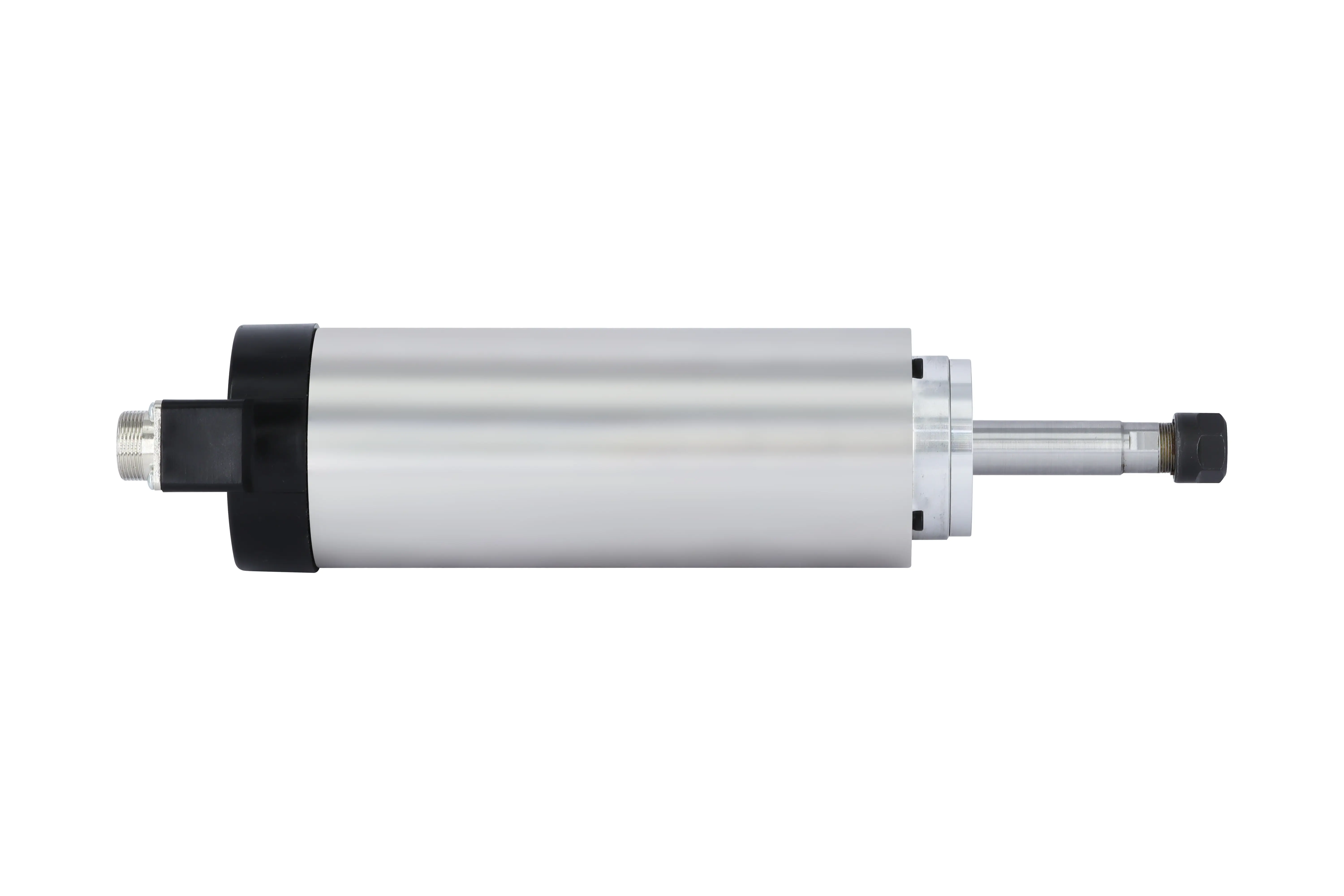

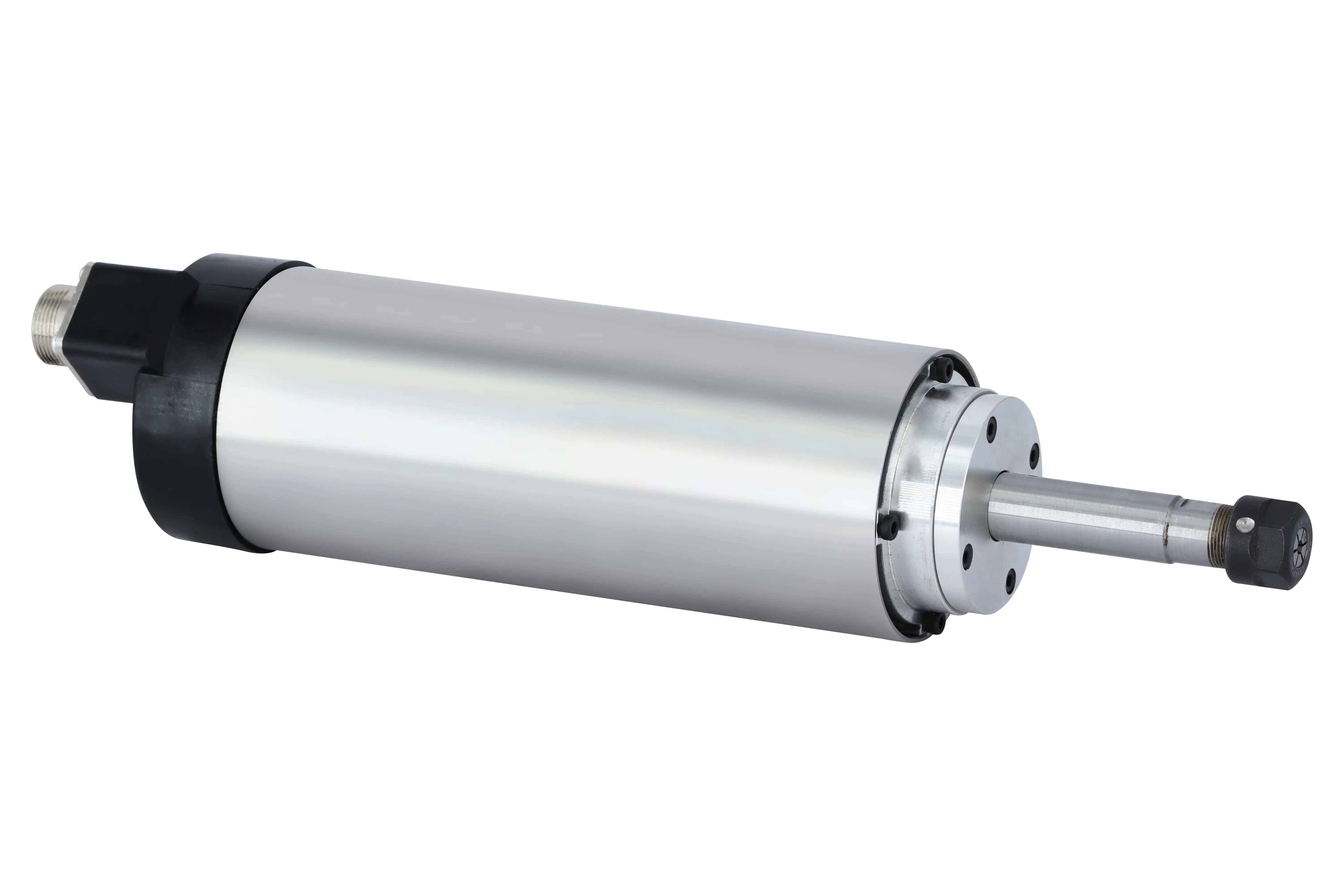

CNC Spindle Motor 0.8 KW,24000 RPM,220 V Air Cooled Round (Long Shaft)

TriQuench India Pvt Ltd @Collabact
TriQuench India Pvt Ltd

Hotline 24/7 :

(+91) 8849951310

Application

  • CNC Wood Carving Machine
  • CNC PCB Drilling Machine
  • CNC Bangle Making Machine

Advantages

  • Optimum Balancing
  • Every spindle balancing is properly tested and barometers of measurement kept to deliver optimum quality
  • Greenery ANTIPOLLUTION
  • Electromagnetic pollution control mechanisms
  • Self Cooling Machinery
  • Efficient Design
  1. Suitable for wood carving and PCB Drilling Applications, Aluminum processing, and Bangle Making Applications
  2. Available with ceramic bearings
  3. Compact layout through the length is only 350 mm
  4. Different configurations due to different power sizes available
  5. CNC Air Cooled Spindle

Model number N08240R220M1
Power 0.8 kW
Speed 24000 RPM
Voltage 220 V
Current 3.1 A
Frequency 400 Hz
Torque 0.31 Nm
Pole 2 pole
Joint of nose ER11 (0.5mm to 7mm)
Bearing Type 2 X 7002 P4 2 X 7000 P4
kg 3 kg
Power Kw 0.8
